Schauer Yamaha Golf Cart Charger - 1996 and newer

Schauer Yamaha Golf Cart Charger - 1996 and newer

  • $325.00
    Unit price per

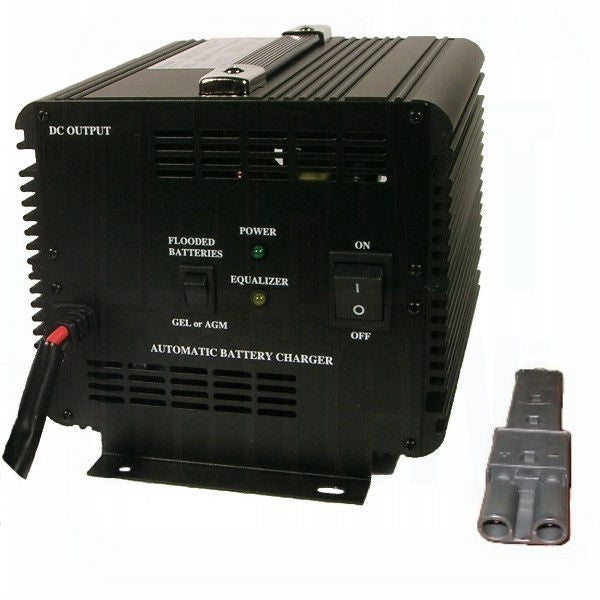

Looking for a new charger that maintains your batteries after fully charging them at a good price. This Japlar Schauer golf cart charger is specifically designed to work with Yamaha Carts. The hardwired six foot output cord comes standard with the 2 pin Yamaha connector. The JAC1548 features an auto-sensing universal input from 100-240VAC. It is perfect for wet cell, gel and AGM style deep cycle batteries. The JAC1548 is made with a durable aluminum case and has flanges for mounting. : Free Shipping to the lower 48 states.
Brand Schauer
Model JAC1548
Chemistry Lead Acid
Dimensions (LxWxH - metric) 286 x 178 x 171
Dimensions (LxWxH - inches) 11.25 x 7.0 x 6.75
Input Frequency (Hz) 50/60
Input Voltage (VAC) 100-240
Maximum Current (Ah, mAh) 15
Operating Temp. Range (oC) 32-120
Output Banks 1
Output Voltage - Charging (V) 59.5 or 57.6
Output Voltage - Float (V) 53.6
Ripple (%) No
Voltage (VDC) 48
Warranty 2 Year
Weight (lb) 11
